Bottle Blowing Machine

HUISUN PET Bottle Blowing Machine

For PET bottle production, equipment selection is not only about output capacity, but also about long-term operating stability, energy efficiency, and overall production cost control.

HUISUN focuses on delivering practical and reliable blow molding solutions designed for real production environments. With strong engineering experience in PET stretch blow molding systems, HUISUN machines are developed to ensure stable operation under continuous high-speed production, while maintaining optimized energy usage and consistent bottle quality.

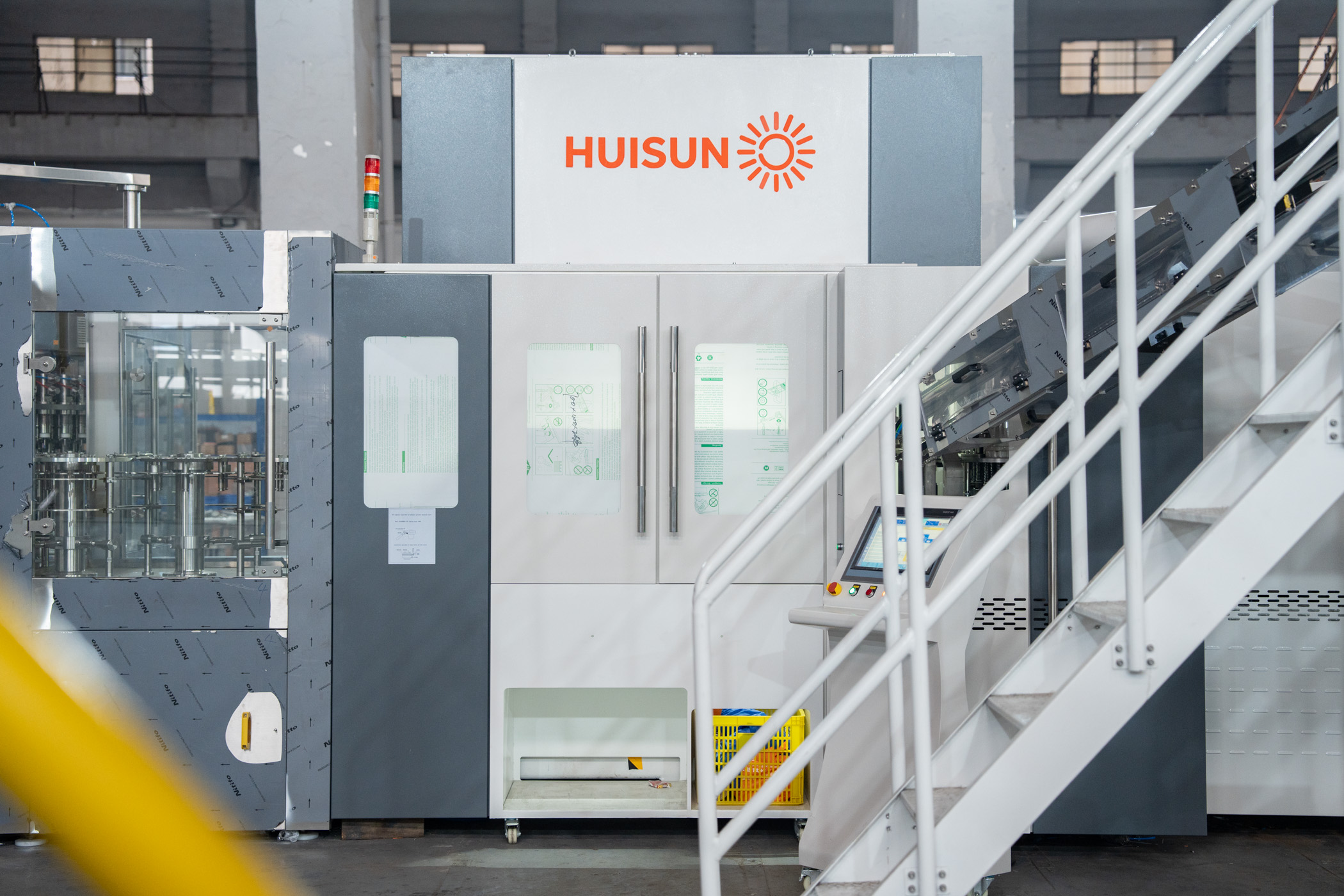

HUISUN rotary type PET bottle blowing machine

Production Value

Unlike purely performance-oriented positioning, HUISUN emphasizes a balanced approach that combines machine stability, energy saving design, and cost-effective investment, helping beverage manufacturers improve overall line efficiency without increasing system complexity.

HUISUN PET blow molding machines are suitable for a wide range of applications including still water, carbonated drinks, juice, and other bottled liquids, supporting production capacities from 12,000 to 45,000 bottles per hour.

By focusing on optimized system configuration and practical production needs, HUISUN provides customers with a reliable solution that helps reduce total operating cost while maintaining stable and efficient production performance.

PET Container Applications

HUISUN PET Container & Application Solutions

Instead of emphasizing "perfect design concepts," HUISUN prioritizes functional compatibility, production stability, and cost-efficient manufacturing, ensuring containers perform reliably throughout the entire production and filling process.

HUISUN PET containers and systems are widely applied in drinking water, carbonated beverages, juice, tea, coffee, functional drinks, and dairy-related liquid products. They are also suitable for different bottle formats and production requirements, supporting manufacturers who need flexible, scalable, and economically optimized packaging solutions.

Drinking Water

Carbonated Beverages

Juice & Tea

Functional / Dairy Drinks

Technical Data

Technical Details of Blow Molding Machine

Series	Model	Cavities	Water Bottle Capacity (BPH)	CSD Bottle Capacity (BPH)	Hot Filling Bottle Capacity (BPH)	Maximum Bottle Size	Application Range
Standard Cavity Size	HSM-CP6	6	10,080–14,400	9,240–13,200	5,040–7,200	220 ml–2,000 ml	Water; Beverages; Milk and Dairy; Edible Oil; Medical Products; Cosmetics; Detergent Bottles; and so on
Standard Cavity Size	HSM-CP8	8	13,440–19,200	12,320–17,600	6,720–9,600	220 ml–2,000 ml	Water; Beverages; Milk and Dairy; Edible Oil; Medical Products; Cosmetics; Detergent Bottles; and so on
Standard Cavity Size	HSM-CP10	10	16,800–24,000	15,400–22,000	8,400–12,000	220 ml–2,000 ml	Water; Beverages; Milk and Dairy; Edible Oil; Medical Products; Cosmetics; Detergent Bottles; and so on
Standard Cavity Size	HSM-CP12	12	20,160–28,800	18,480–26,400	10,080–14,400	220 ml–2,000 ml	Water; Beverages; Milk and Dairy; Edible Oil; Medical Products; Cosmetics; Detergent Bottles; and so on
Standard Cavity Size	HSM-CP14	14	22,050–31,500	20,090–28,700	11,025–15,750	220 ml–2,000 ml	Water; Beverages; Milk and Dairy; Edible Oil; Medical Products; Cosmetics; Detergent Bottles; and so on
Standard Cavity Size	HSM-CP16	16	25,200–36,000	22,960–32,800	12,600–16,400	220 ml–2,000 ml	Water; Beverages; Milk and Dairy; Edible Oil; Medical Products; Cosmetics; Detergent Bottles; and so on
Standard Cavity Size	HSM-CP18	18	28,350–40,500	25,830–36,900	14,175–20,250	220 ml–2,000 ml	Water; Beverages; Milk and Dairy; Edible Oil; Medical Products; Cosmetics; Detergent Bottles; and so on
Standard Cavity Size	HSM-CP20	20	31,500–45,000	28,700–41,000	15,750–22,500	220 ml–2,000 ml	Water; Beverages; Milk and Dairy; Edible Oil; Medical Products; Cosmetics; Detergent Bottles; and so on
Standard Cavity Size	HSM-CP22	22	34,650–49,500	31,570–45,100	17,325–24,750	220 ml–2,000 ml	Water; Beverages; Milk and Dairy; Edible Oil; Medical Products; Cosmetics; Detergent Bottles; and so on
Standard Cavity Size	HSM-CP24	24	37,800–54,000	34,440–49,200	18,900–27,000	220 ml–2,000 ml	Water; Beverages; Milk and Dairy; Edible Oil; Medical Products; Cosmetics; Detergent Bottles; and so on

5L Rotary Blow Molding

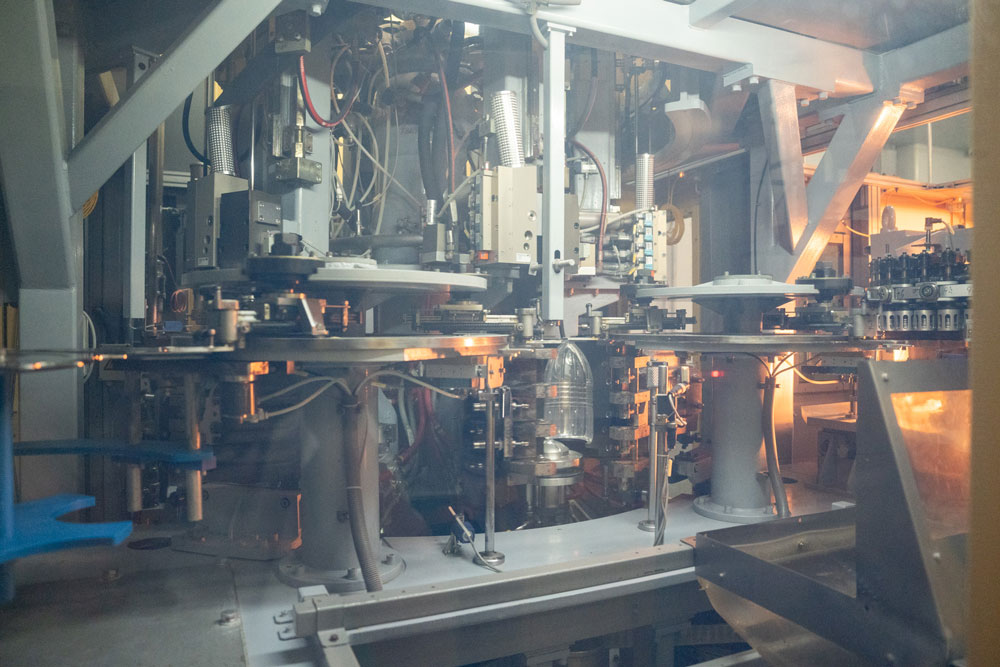

HUISUN 5L Rotary Blow Molding Machine

HUISUN provides rotary PET blow molding solutions specifically designed for large-volume containers such as 5L bottles, ensuring stable production performance and efficient energy utilization in continuous operation.

The system is available in different cavity configurations to meet various production capacity requirements:

4-cavity configuration:4,000 - 4,800bottles per hour

6-cavity configuration:6,000 - 7,200bottles per hour

The actual output may vary depending on preform weight, bottle design, and process conditions, especially for heavy-weight 5L containers where heating and cooling time directly affect cycle efficiency.

HUISUN rotary blow molding technology is engineered to maintain stable forming performance, consistent bottle quality, and optimized cycle control, making it suitable for large-format water bottle production with high reliability and cost efficiency.

Working Principle

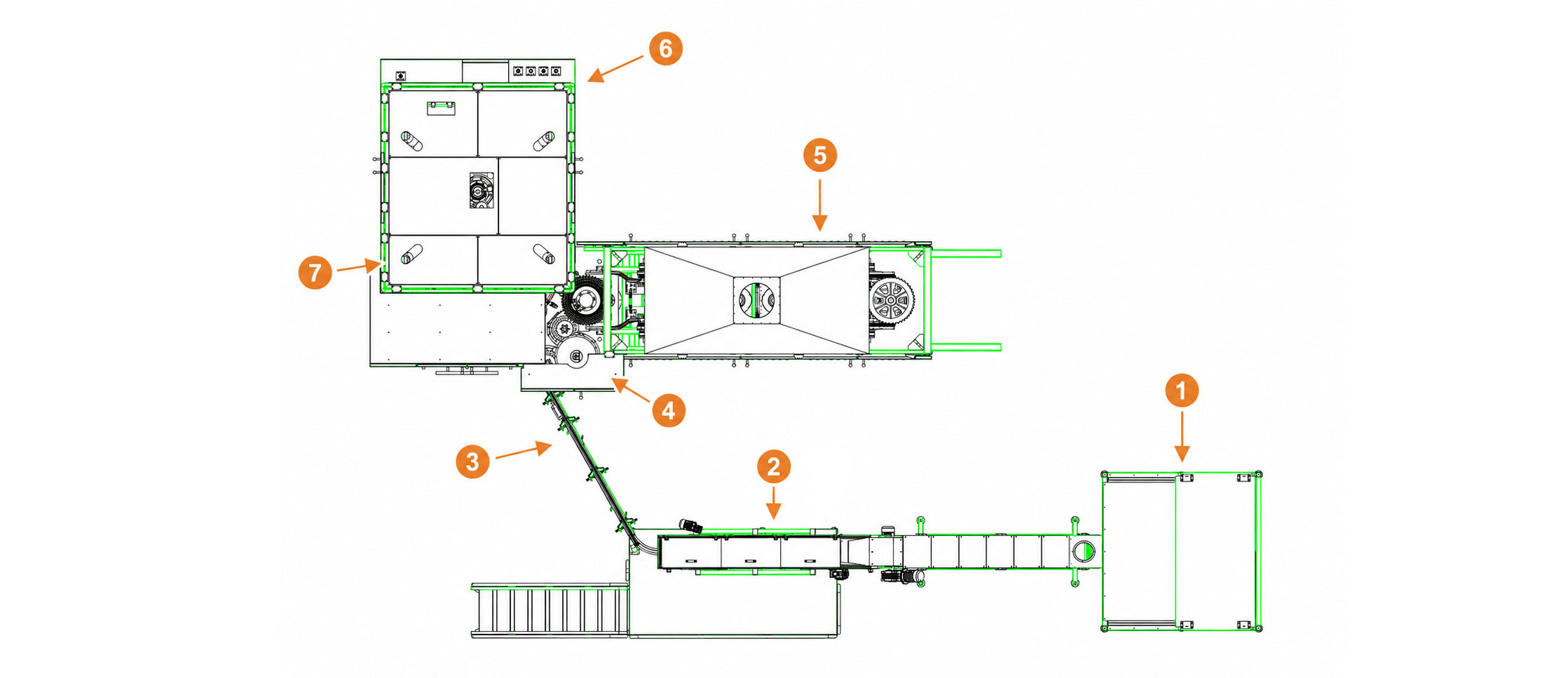

Working Principle of HUISUN PET Bottle Blowing Machine

HUISUN PET bottle blowing machine integrates advanced technology and a rational process flow to ensure high efficiency, stable performance and consistent bottle quality.

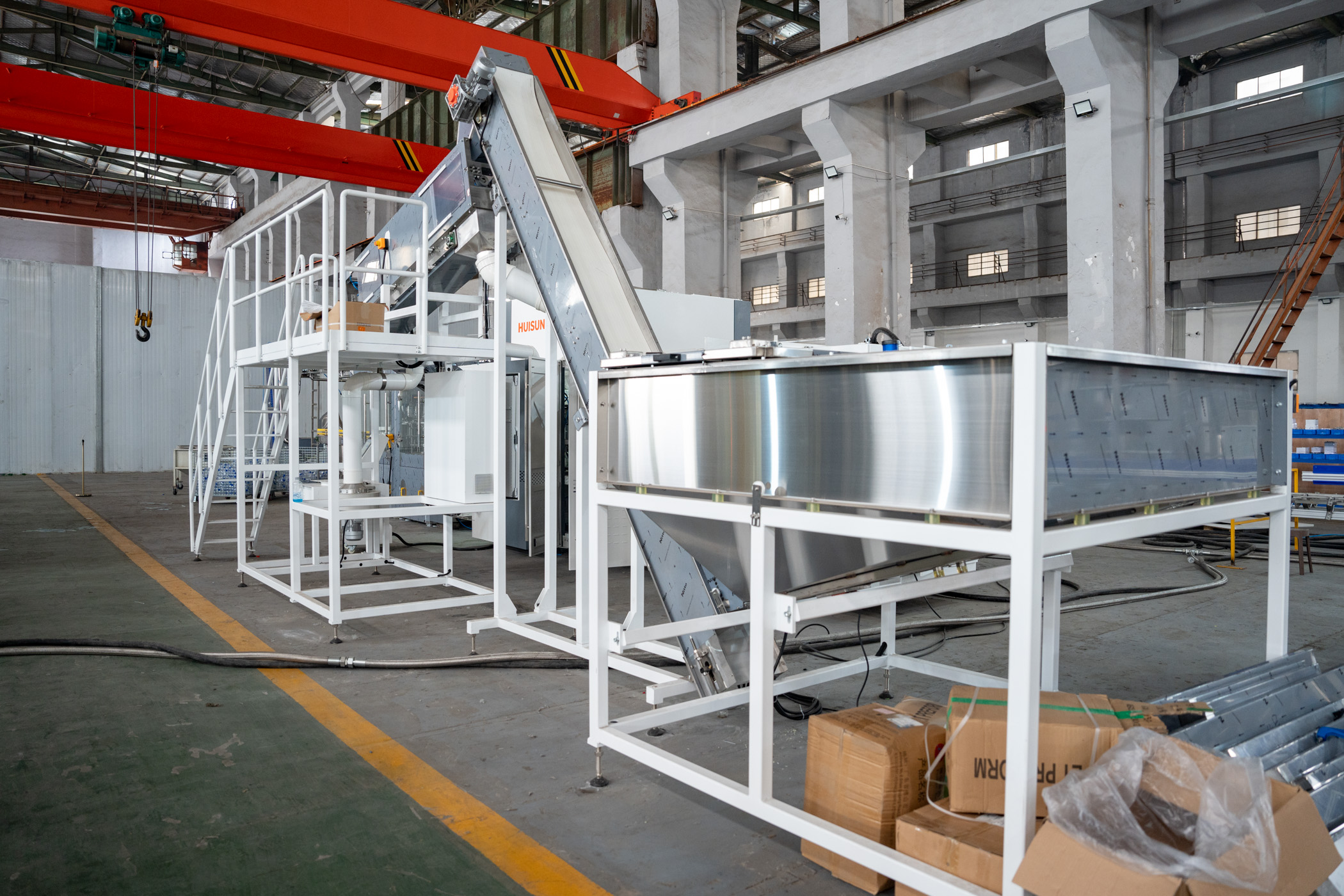

Preform feeding

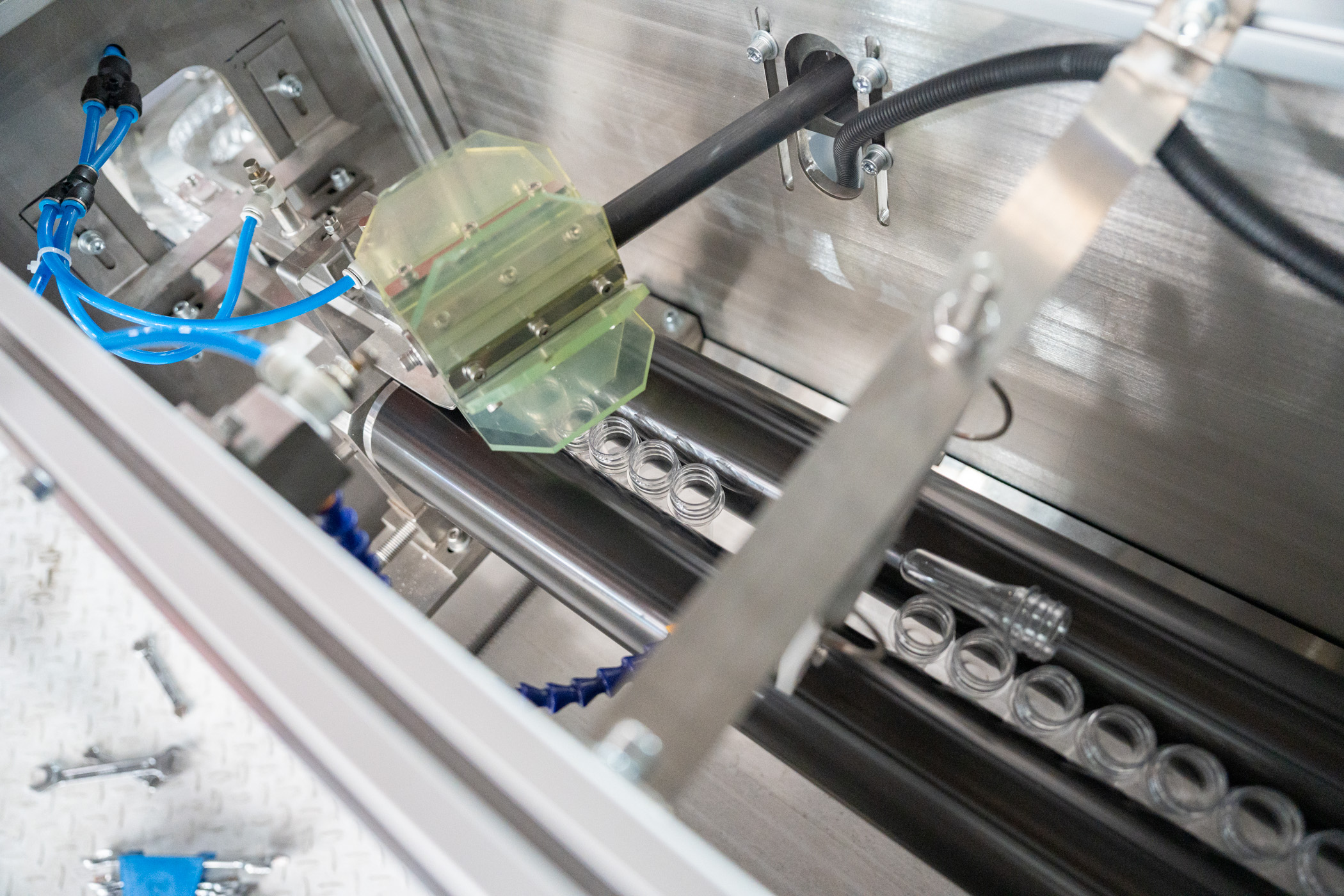

Preform unscrambler

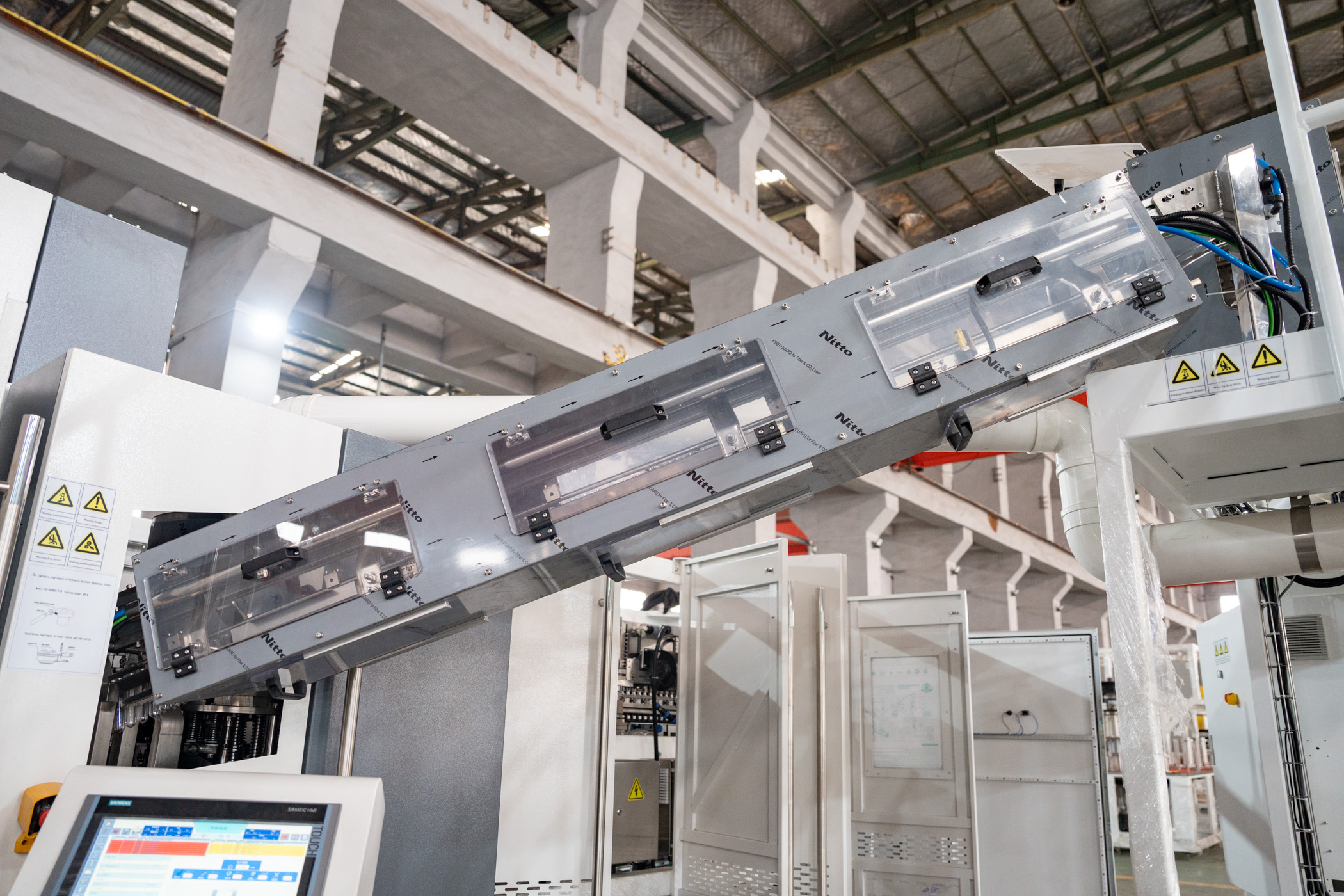

Conveying

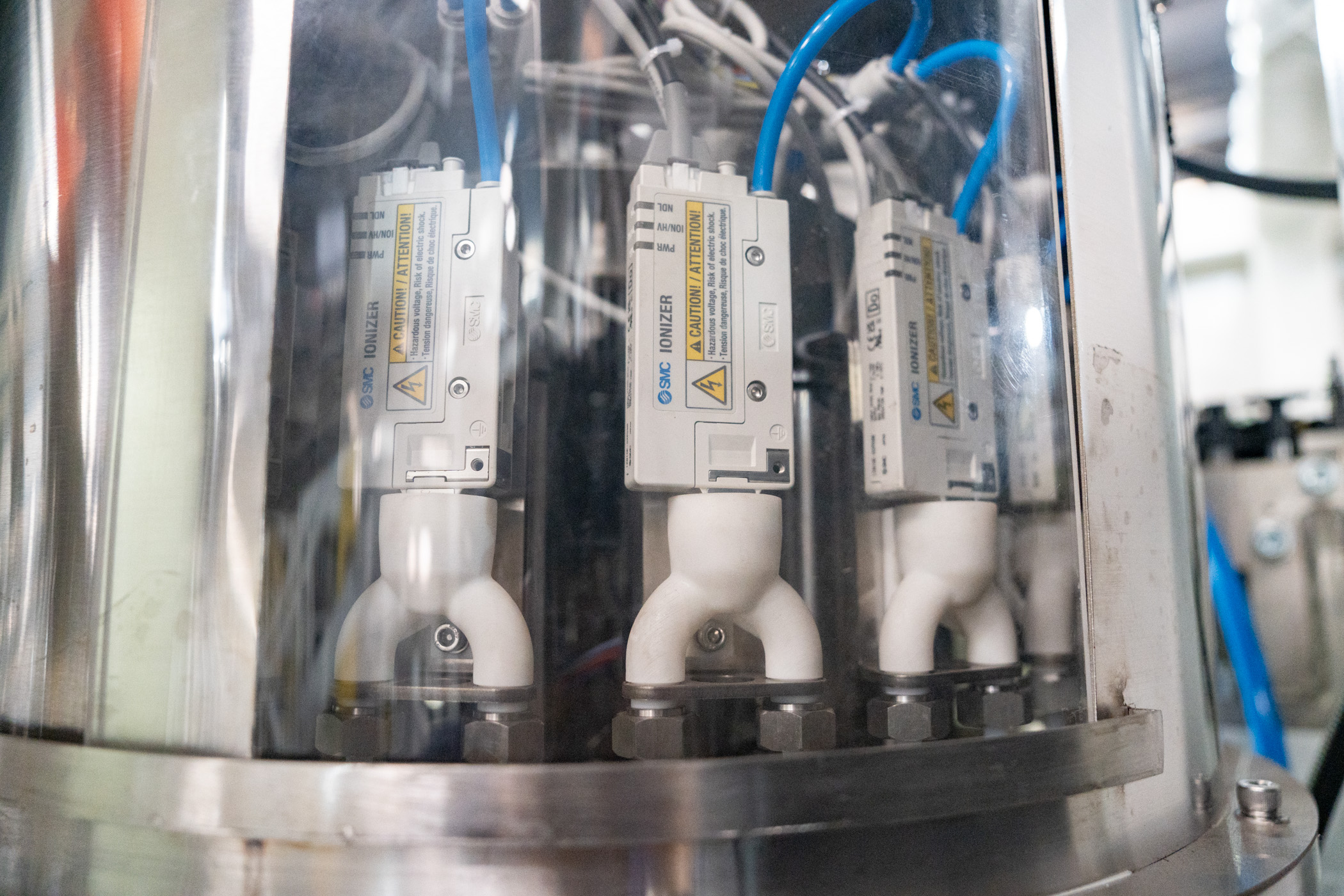

Electrostatic dust removal

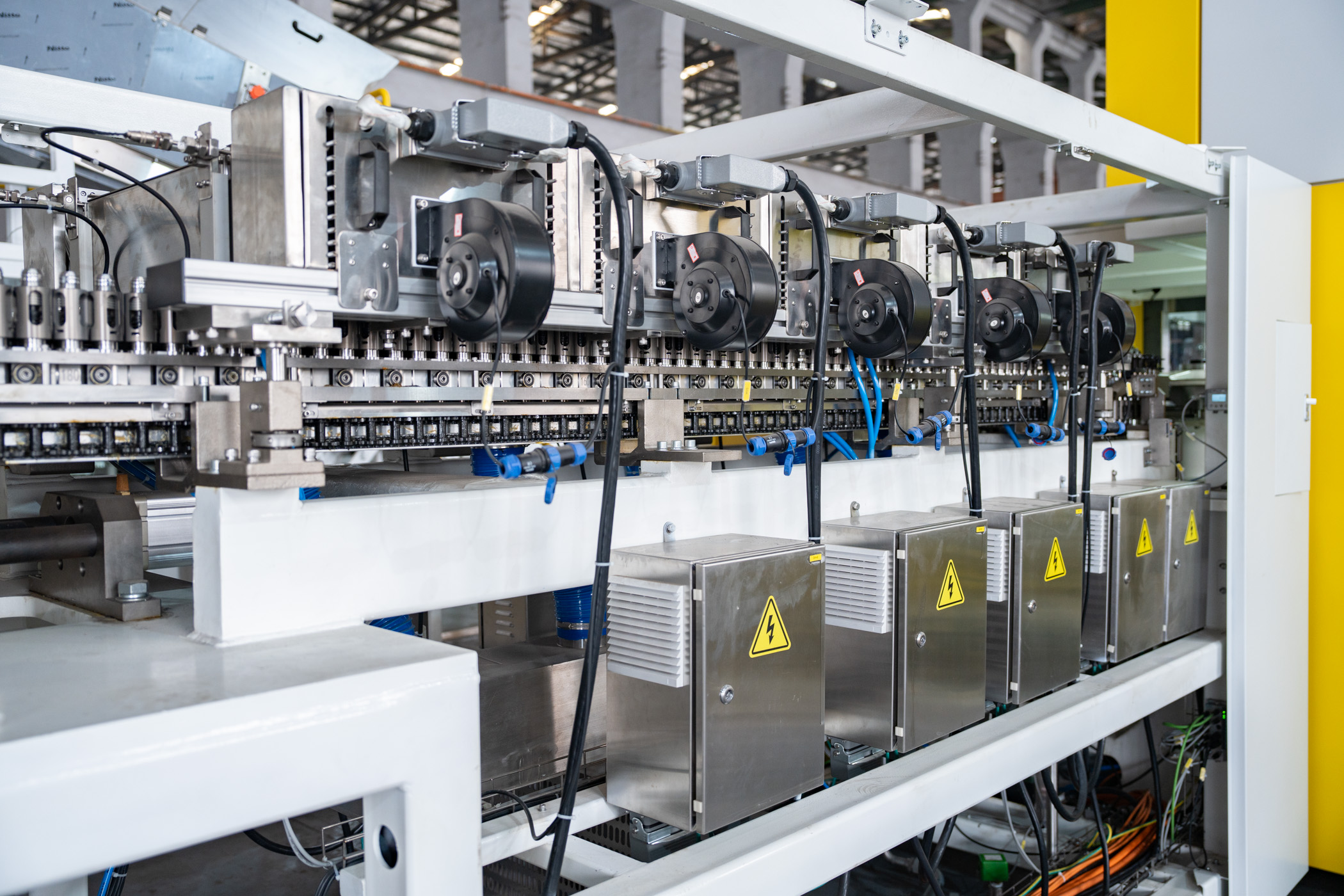

Preform heating

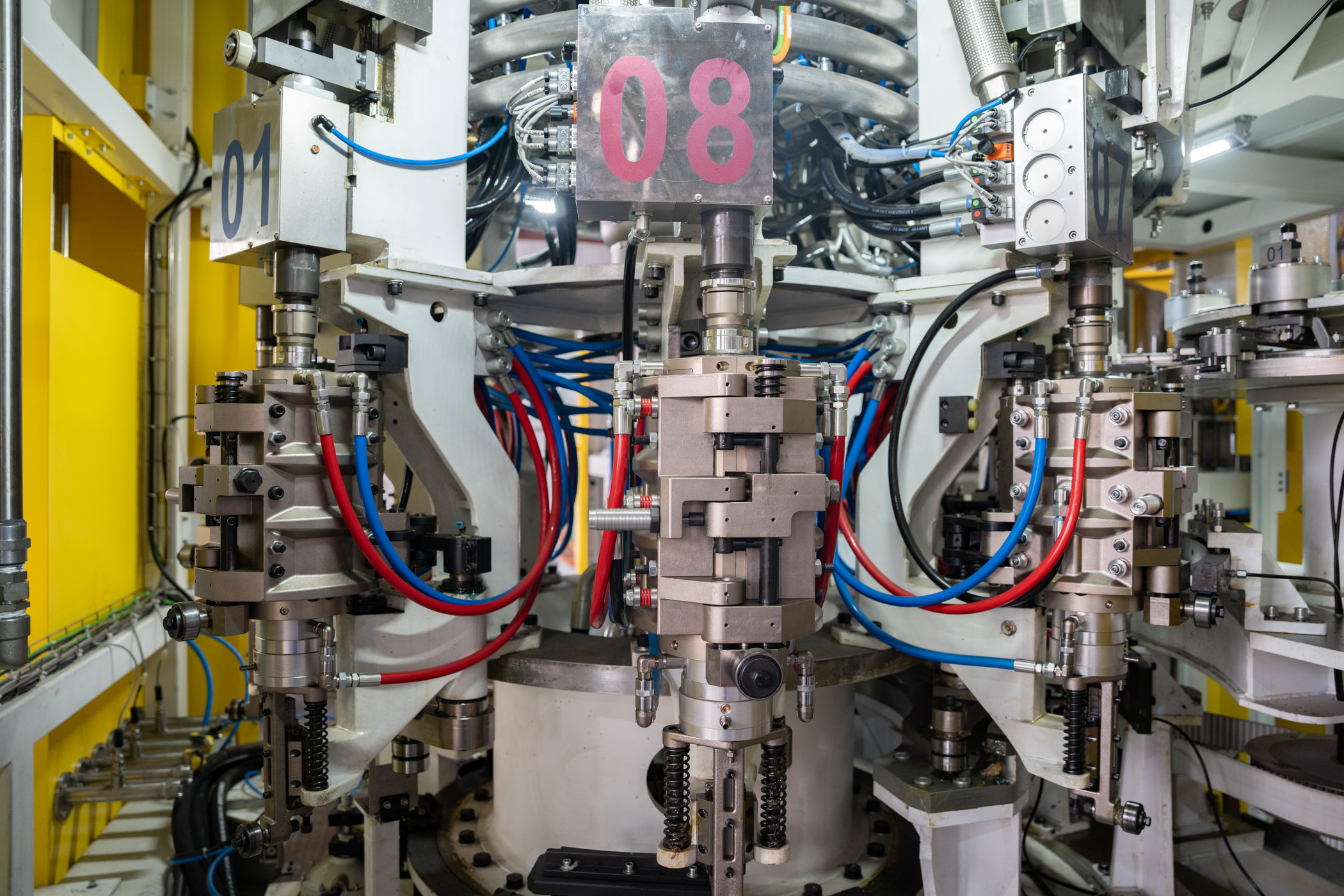

Bottle blowing

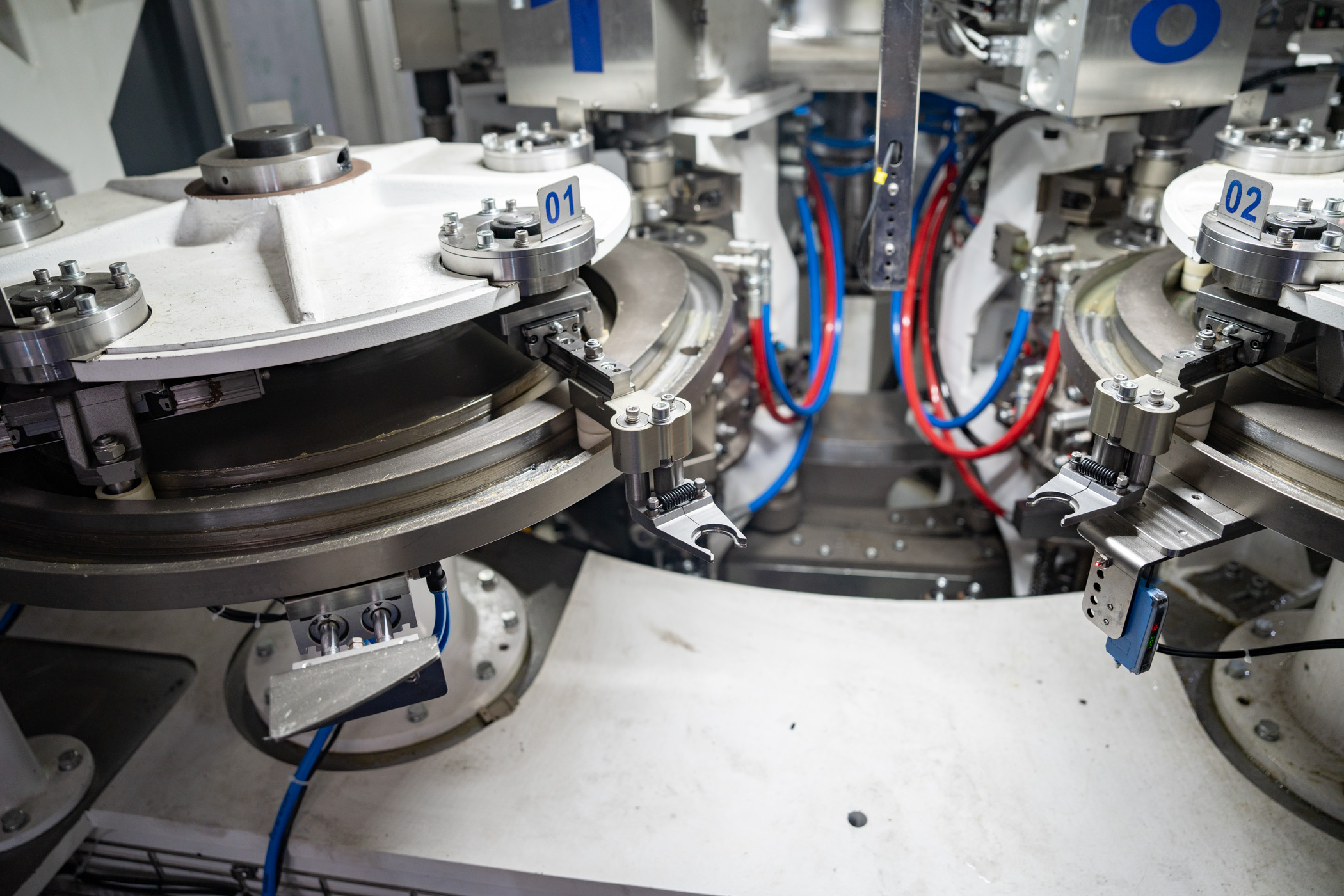

Bottle discharge
